NI 9401 8-Channel,100 ns Digital I/O Module

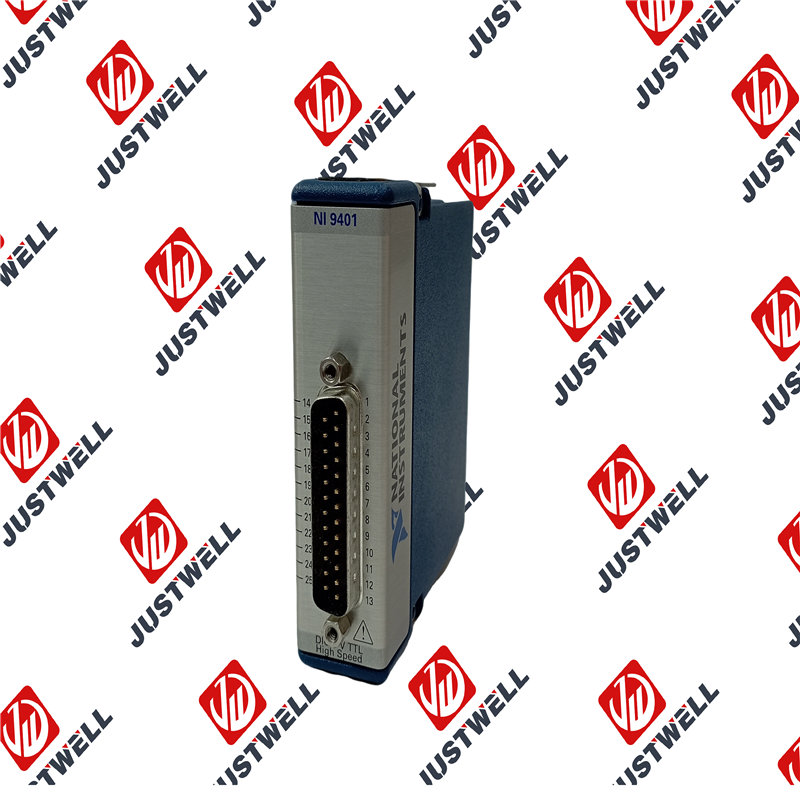

Description NI 9401 8-Channel,100 ns Digital I/O Module Product Dimensions： Product Description (Detailed Explanation) The NI 9401 is a C Series digital module that provides a direct interface between industrial digital sensors/actuators and a controller. Its standout feature is its bidirectional capability, organized in two 4-bit nibbles. This means you can configure the first four ports as inputs and the next four as outputs, or all eight in one direction. Because it is a High-Speed module, it does not use mechanical relays; instead, it uses solid-state logic capable of switching at rates up to 10 MHz. This makes it ideal for communicating with encoders, pulse-width modulation (PWM) controllers, and custom digital protocols. Product Parameters (Technical Specifications) Parameter Category Specification Channels 8 Digital I/O Channels Direction Control Bidirectional (Configurable in 4-bit increments) Update Rate / Propagation Delay 100 ns (Max) Logic Levels 5 V TTL (Transistor-Transistor Logic) Maximum Frequency 10 MHz I/O Connector 25-pin D-SUB Input Voltage Range 0 V to 5.25 V Output Current 2 mA per channel (Standard TTL drive) Isolation 60 V DC Continuous (Chassis-to-Earth) Product Advantages (Key Benefits) Ultra-Low Latency: With a 100 ns propagation delay, it is one of the fastest digital modules in the C Series family, essential for real-time control loops. Flexible Reconfiguration: The ability to switch between input and output modes allows a single module to handle different tasks, reducing the need for multiple specialized cards. FPGA Integration: When used in a CompactRIO chassis, the NI 9401 can be controlled directly by the LabVIEW FPGA, enabling custom high-speed counters, PWM generation, and specialized digital triggers. High-Density Connectivity: The 25-pin D-SUB connector provides a secure and standardized way to manage 8 channels and multiple ground pins in a compact form factor. Hot-Swappable: Like most C Series modules, it can be removed or inserted into a powered chassis without damaging the hardware or interrupting other module operations. Precautions (Important Notes) Current Limitations: The NI 9401 is a logic-level module. It cannot directly drive heavy loads like solenoids or large relays. Exceeding the 2 mA per channel limit may damage the module. Termination: For high-frequency signals (near 10 MHz), use shielded cables and consider proper impedance termination to prevent signal reflections and “ringing.” Configuration Sync: Ensure your software (LabVIEW/NI-DAQmx) configuration matches the hardware wiring. Setting a pin to “Output” while an external device is also “Driving” the line can cause a short circuit. Cable Length: Due to the high-speed nature of TTL signals, keep cable lengths as short as possible to prevent signal degradation and electromagnetic interference. Product Applications (Typical Use Cases) The NI 9401 is commonly found in sophisticated R&D and manufacturing environments: Quadrature Encoder Reading: Interfacing with high-resolution optical encoders to track motor position and velocity in real-time. Pulse-Width Modulation (PWM): Generating high-frequency PWM signals to control motor drivers (like the NI 9505) or LED brightness. Protocol Emulation: Simulating digital communication protocols such as SPI, I2C, or custom serial data streams via LabVIEW FPGA. Event Counting and Timing: Measuring the time interval between digital pulses or counting high-speed events on a production line. High-Speed Triggering: Synchronizing multiple data acquisition modules based on an external digital trigger signal. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： ACCURAY 8-061588-002 ADEMCO ADR1600E ADTEC AX-1000-AMII ACCURAY QA-3-017948-003 ADEMCO HRM60N500 ADTRAN 4200663L1 ACCURAY 086370-001 ADEMCO VISTA-250FBP Advanced ICP-16L ACCURAY 086158-004 ADEPT Adept 101 ADVANCED DUO-I8030NM ACCURAY 085221-001 ADEPT AWCII 040 ADVANCED 9R918W3 ACCURAY 061552-001 ADEPT EJI90340-40000 ADVANCED SB1391-C-R-C-A Accu-Sort BoxPC-126M ADEPT SCARA 550 Advanced MN3150272-006 ACME TA-1-81008 ADEPT 10330-11350 Advantech PPC-105T-ABAR ACME TA-1-32406 ADEPT 10332-12350 Advantech FPM-3171G-XCE ACME TA-1-81306 ADEPT ASSY 10350-00100 Advantech WOP-2100T-N2AE ACME T-1-53011 ADEPT ADEPT AWCII 040 ADVANTEST R3265A ACME TA-2-81003 ADEPT AWCII-040 ADVANTEST BLF-022828 ACC-BOARD Acquisition AL81G ADEPT 90402-40013/XY-HRS013-S1B1-AD ADVANTEST BLG-022829 ACS ACS-0400-PS ADEPT 90402-40013 ADVANTEST R6244 ACS SB1381-B-E-R-A-PM2 ADEPT 90400-20055/XY-HRS-055M201 Advantest D3185A ACS SB1381-C-E-R-A ADEPT 90400-02100-EXTB01AD AE RAPID-F ACS SB214ND-F-9 ADEPT 90400-70030 AEG 41-94384 ACS MOTION CONTROL HSSI-I016 ADEPT 90400-71031 AEG M907-122 ACT TCS-SRME-6210-CD-RTM ADEPT 10330-11350 AEG DEP220 ACTION AIOI8100 ADIXEN FM36122 AEG DTA200 ACTUS POWER NPSA-TMTA-222 ADP ADP-1 AEG DTA201 ACUITY 002-PV900 ADRIVE E642B-MGB-K-01 AEG PC-A984-145 ACUITY 010-PV9040 ADTEC 3000III AEG MM-PM22-200 ADC FPL-72RP0W-1448B ADTEC AXR-2000III AEG MM-PM21400C ADDI-DATA APCI-1710 ADTEC AX-2000EUII-N AEG MM-PM21-400 AEG AS-P892-000 AEG M135-H60A-OYOY-G3 AEG PC-E984-381 AEG M344-MKOA-4001 Aerotech U100M-A-40-F5 AEG MM-PM22-300 AEG CGC13-TB AFE DP320T-BC AGIE MJG-2129 AGILENT G2630-66015
